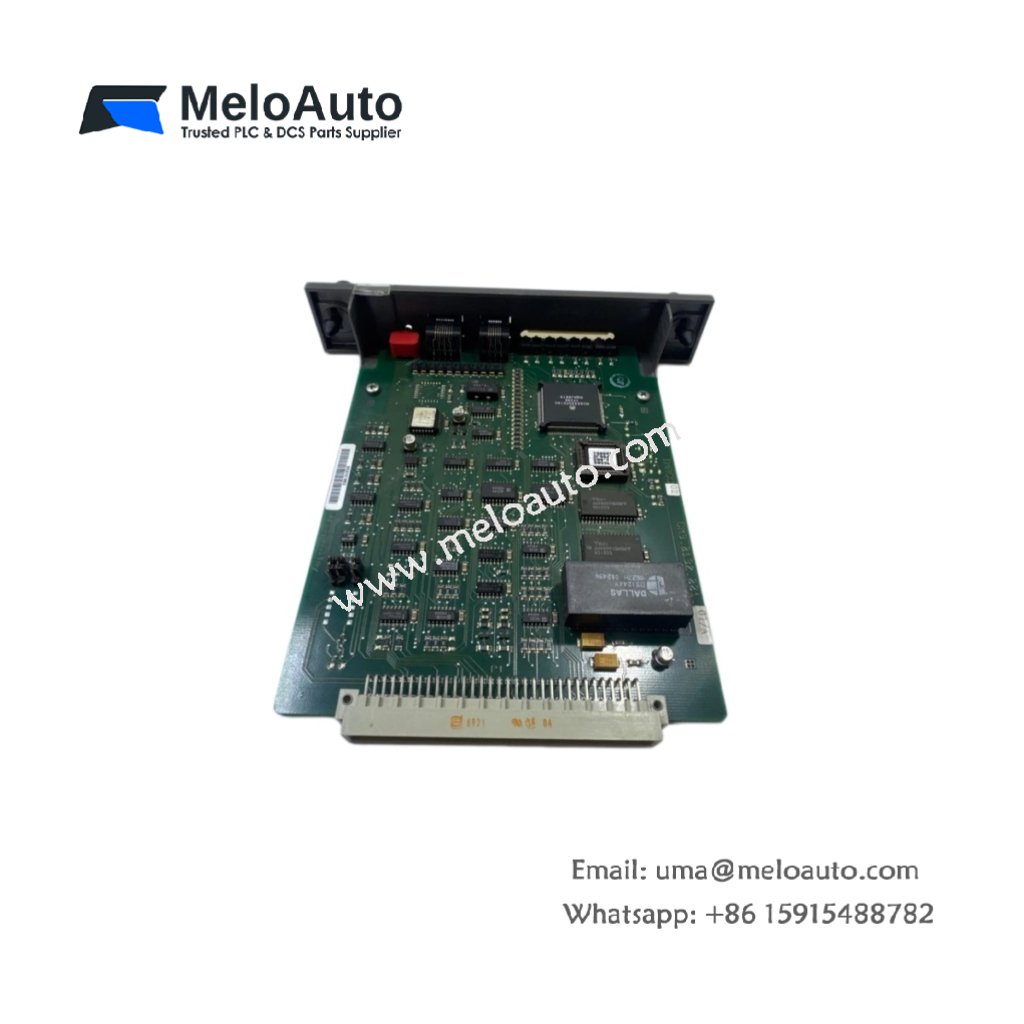

ABB Bailey IMRCC02 CPU & Communication Module

This controller module serves as the processing core for ABB Bailey INFI 90 systems. You will find the ABB Bailey IMRCC02 CPU & Communication Module executing control logic and managing network data exchange. Its dual-processor architecture ensures reliable operation for critical process applications.

Technical Specifications

This module contains one main CPU and one dedicated communication coprocessor. You can also locate two serial ports for configuration and network connectivity. The ABB Bailey IMRCC02 CPU & Communication Module stores program data in battery-backed SRAM for power loss protection. A replaceable lithium battery maintains this memory during system shutdowns. Therefore, you should replace this battery every five years.

Parameter	Specification
Full Product Name	ABB Bailey IMRCC02 CPU & Communication Module
Series	INFI 90 / Bailey
Module Type	CPU & Communication Controller
Weight	0.55 kg
Length	25.5 cm
Width	3.2 cm (single-wide)
Main Processor	16-bit CPU
Coprocessor	Communication dedicated
Serial Ports	2 (RS-232/RS-485)
Memory Type	Battery-backed SRAM
Battery Type	Lithium (replaceable)
Program Capacity	128 KB
Data Capacity	64 KB
Energy Storage	Lithium battery + capacitors

Processing and Communication Details

The ABB Bailey IMRCC02 CPU & Communication Module draws its operating power from the INFI 90 bus backplane. The main CPU executes ladder logic and function block programs continuously. You can connect a programming terminal to either serial port for online configuration. Moreover, the coprocessor handles all network message routing independently. This design offloads communication tasks from the main processor for faster control loops.

Mechanical Integration and Mounting

You must insert the ABB Bailey IMRCC02 CPU & Communication Module carefully into any standard INFI 90 slot. After full insertion, secure the module using the top and bottom metal retaining clips. The module measures exactly 25.5 centimeters in length and 3.2 centimeters in width. Its total weight reaches approximately 0.55 kilograms for straightforward handling. Furthermore, the module includes a front extraction handle and status LED panel.

Environmental and Storage Guidelines

You should store this ABB Bailey IMRCC02 CPU & Communication Module in an anti-static bag away from moisture. The module operates reliably between 0°C and +60°C ambient temperature. Likewise, keep the unit away from conductive dust or strong electromagnetic fields. Because the module contains a lithium battery, dispose of it according to local regulations.
