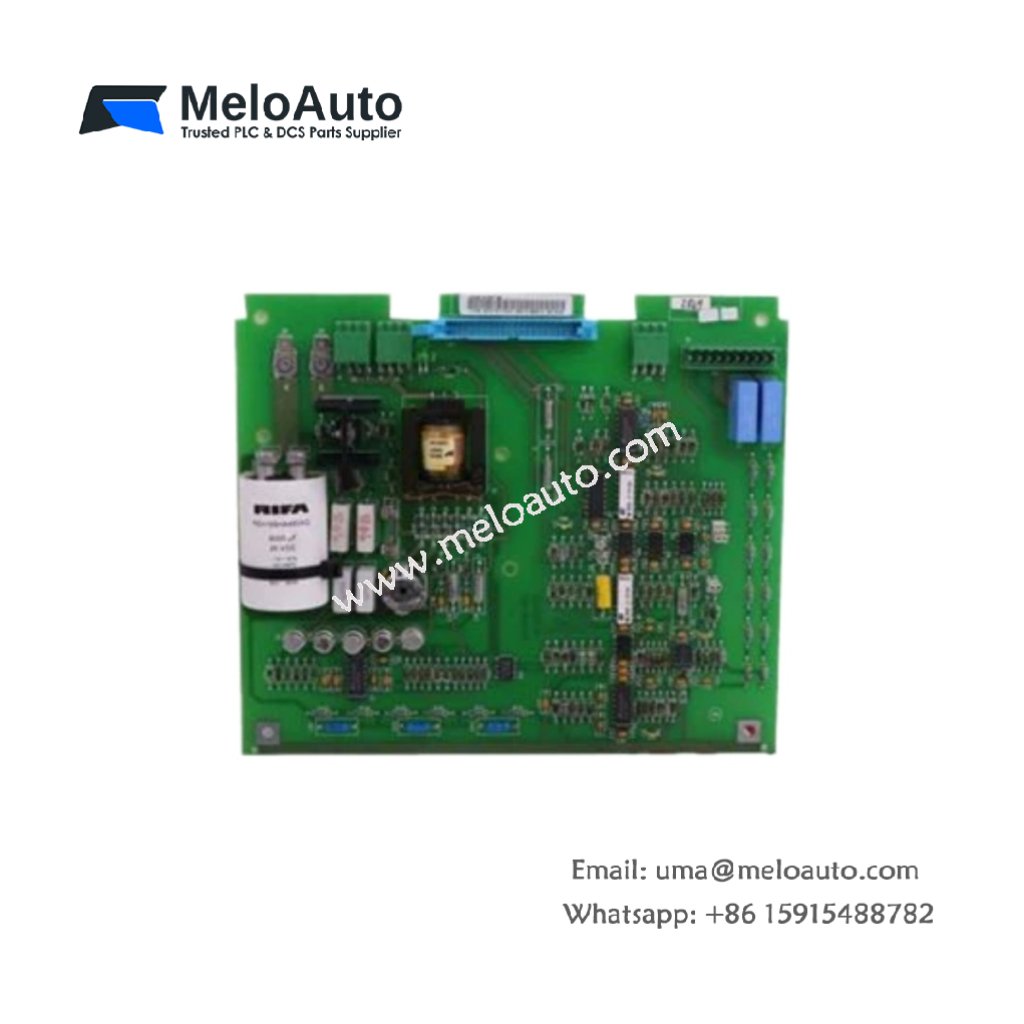

ABB Bailey IIDST02 Signal Conditioner Module

Engineered for ABB Bailey INFI 90 Signal Isolation

This module conditions and isolates analog signals for the control system. It provides accurate signal conversion for the ABB Bailey IIDST02 unit. You will find this conditioner in INFI 90 distributed control systems. Unlike four-channel versions, this compact module supports two independent channels. It handles common voltage and current input types.

Technical Specifications & Physical Dimensions

We designed this signal conditioner for space-constrained applications. The table below presents all verified technical specifications.

Parameter	Specification
Physical Dimensions (W x H x D)	140mm x 110mm x 45mm
Total Weight	0.40 kg (400 grams)
Input Channels	2 independent channels
Input Voltage Range	0-10V, ±10V, 0-5V (selectable)
Input Current Range	0-20mA, 4-20mA (selectable)
Output Signal	0-10V or 4-20mA (configurable)
Accuracy	±0.1% of full scale
Operating Voltage	24V DC (18V – 32V)

Functional Architecture and Channel Isolation

This conditioner connects to field transmitters and sensors directly. It uses two independent channels with full galvanic isolation. You can configure each channel for voltage or current input. Moreover, the module includes fine-tune potentiometers for zero and span. These components calibrate the output to match specific engineering units. Consequently, the board delivers precise scaled signals to the INFI 90 I/O system.

Installation and Operational Guidelines

The ABB Bailey IIDST02 updates both channels every 40 milliseconds. It provides 1500V isolation between input, output, and power. You must set the DIP switches for each channel’s configuration. Always use shielded cables for input signals longer than 30 meters. This practice reduces noise pickup on sensitive analog circuits. Furthermore, the module supports loop power for 2-wire transmitters. This feature eliminates external power supplies for field devices.

Physical Characteristics and Environmental Limits

This signal conditioner has a rugged, industrial-grade plastic housing. Its lightweight 0.40 kg design allows for easy DIN rail mounting. The layout follows ABB Bailey standard INFI 90 specifications. Therefore, it fits securely into any INFI 90 termination assembly. The module requires 40mm clearance for ventilation. In addition, it maintains stable operation between -10°C and 55°C ambient temperature. You can store this unit safely between -25°C and 70°C.
