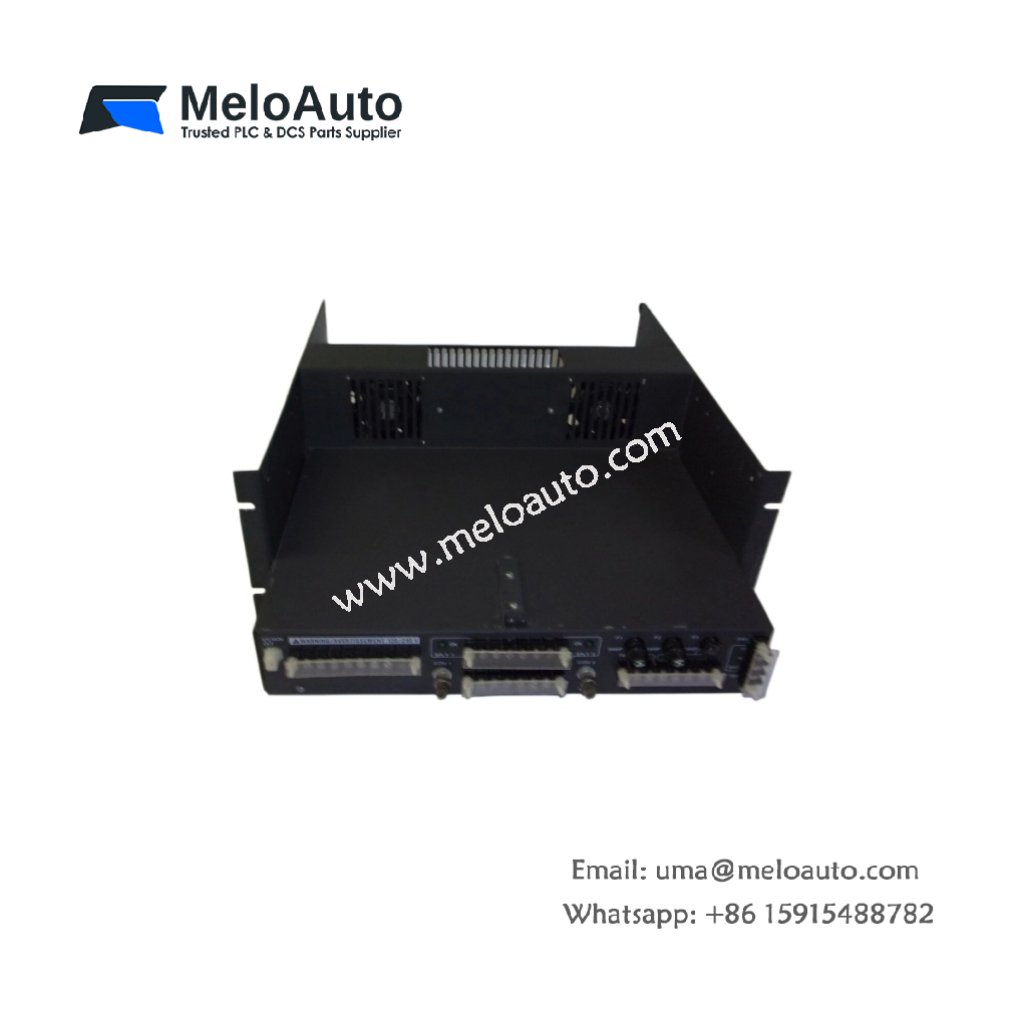

ABB Bailey IEPDS01: Input System Power Module for Reliable Power Distribution

The IEPDS01 from ABB Bailey functions as a dedicated input system power module. It distributes stable power to I/O modules within the Bailey control architecture. This module converts incoming supply voltages into regulated outputs for field devices. Engineers rely on its robust design for consistent system operation.

Technical Specifications & Hardware Details

Power Conversion and Regulation Capabilities

The IEPDS01 accepts universal AC or DC input voltages for global deployment flexibility. Its onboard switching regulators deliver clean DC power to connected I/O modules. You can rely on this module for consistent output under varying load conditions. Furthermore, the design includes overcurrent and short-circuit protection on each output channel. This protection prevents module damage during field wiring faults.

Physical Construction and Thermal Management

This power module features a rugged single-board design optimized for standard card cages. Its metal housing aids heat dissipation for reliable long-term operation. The IEPDS01 includes a removable terminal block for field power connections. You can install or replace this module without disrupting adjacent I/O cards. The board layout separates power and signal paths to minimize electrical noise.

System Integration and Power Distribution

The module distributes power across the backplane to multiple I/O assemblies. It ensures proper voltage levels for input modules, termination units, and field sensors. The IEPDS01 works alongside other Bailey system components for complete power management. For similar industrial applications, static trip units and protective relays use comparable power supply principles. However, this input system power module specifically addresses I/O power requirements within the Bailey ecosystem. Facilities depend on it for consistent field device energization.
