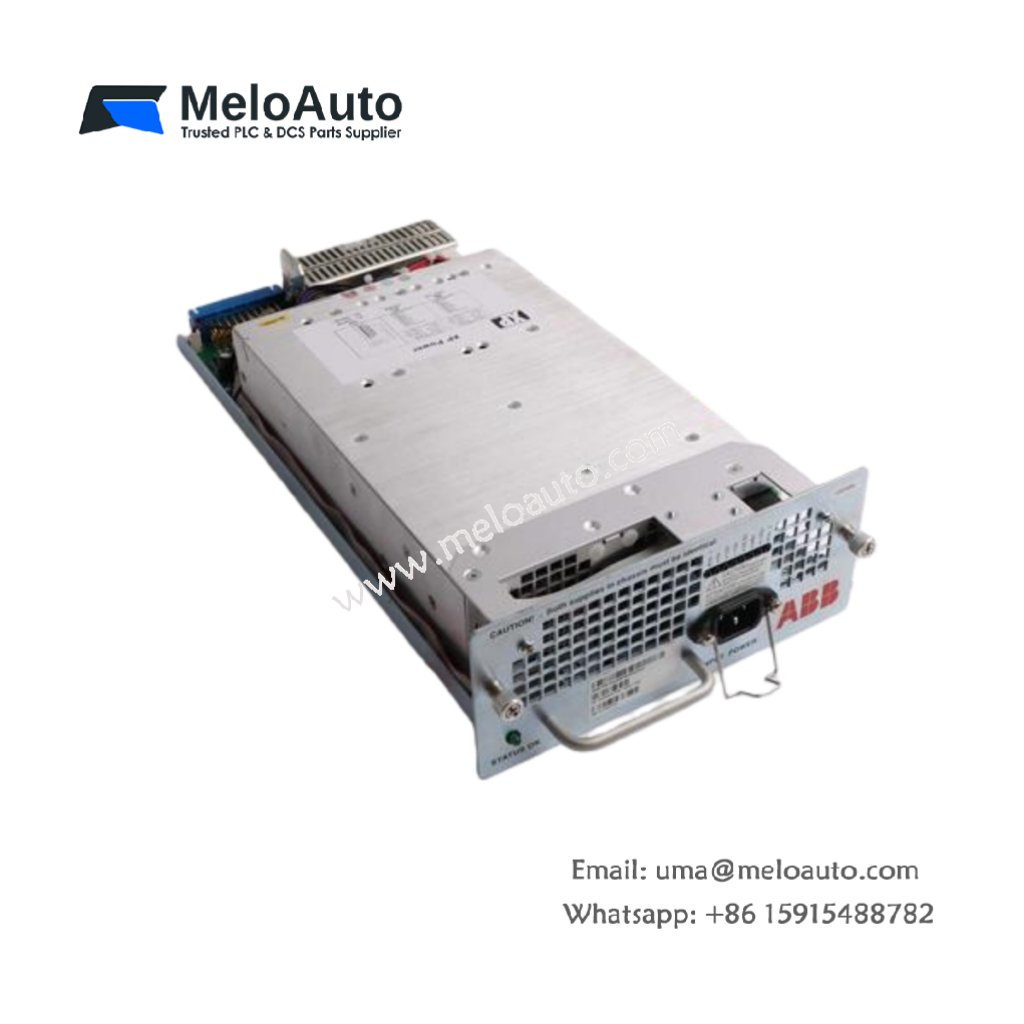

ABB AV31 Contronic Module

Overview

The ABB AV31 Contronic Module is designed to provide precise control for industrial automation systems, especially for motor control and other critical automation tasks. It operates efficiently with a 12 V DC power supply, consuming 0.3 A for internal functions. The AV31 supports a wide range of input voltages from 380 V to 480 V AC and delivers output frequencies ranging from 0 to 50 Hz. This module is built to integrate seamlessly into your system, offering reliable communication and powerful data processing capabilities.

Key Features

Model: AV31
Manufacturer: ABB
Type: Contronic Module
Application: Ideal for motor control and other industrial automation tasks
Power Supply: 12 V DC (0.3 A typical consumption)
Input Voltage Range: 380 V to 480 V AC
Output Frequency: 0 to 50 Hz
Communication Protocols: Supports Modbus TCP/IP, CANopen
Protection Class: IP21 (protection against dust and water)
Operating Temperature: -20°C to +60°C
Storage Temperature: -40°C to +85°C
Isolation Voltage: 1500 V between power and signal

Technical Specifications

Specification	Details
Model	AV31
Manufacturer	ABB
Power Handling Capacity	Up to 750 kW
Input Voltage Range	380 V to 480 V AC
Output Frequency	0 to 50 Hz
Communication Protocols	Modbus TCP/IP, CANopen
Protection Class	IP21
Operating Temperature	-20°C to +60°C
Storage Temperature	-40°C to +85°C
Power Consumption	0.3 A (typical at 12 V DC)
Isolation Voltage	1500 V between power and signal
Dimensions	12.7 cm x 5.1 cm x 12.7 cm
Weight	0.2 kg

Benefits

The ABB AV31 Contronic Module offers several key benefits that enhance system performance and reliability:

Flexible Power Input: Handles a wide input voltage range from 380 V to 480 V AC, making it compatible with various systems.
Precise Control: Provides an output frequency range of 0 to 50 Hz, ensuring accurate motor control and automation.
Data Acquisition and Processing: Collects and processes critical data for system diagnostics, performance monitoring, and analysis.
Reliable Communication: Integrates easily with other devices and systems via Modbus TCP/IP and CANopen, ensuring smooth communication.
Protection and Durability: With IP21 protection class and a wide operating temperature range, the AV31 is built to withstand tough industrial conditions.

Applications

The ABB AV31 is ideal for industrial applications that require precise motor control, seamless data integration, and reliable communication. It is commonly used in:

Motor control systems for industrial automation.
Process control systems for precise data monitoring and management.
Energy management and performance analysis in various industrial sectors.

Warranty and Condition

Condition: New, in stock
Warranty: 1-year standard manufacturer warranty

Conclusion

The ABB AV31 Contronic Module is a powerful, versatile solution for industrial automation systems. It provides precise control, flexible input/output handling, and reliable communication, all within a compact design. Ideal for motor control and other critical tasks, this module ensures efficient and accurate operation in a wide range of industrial environments.
