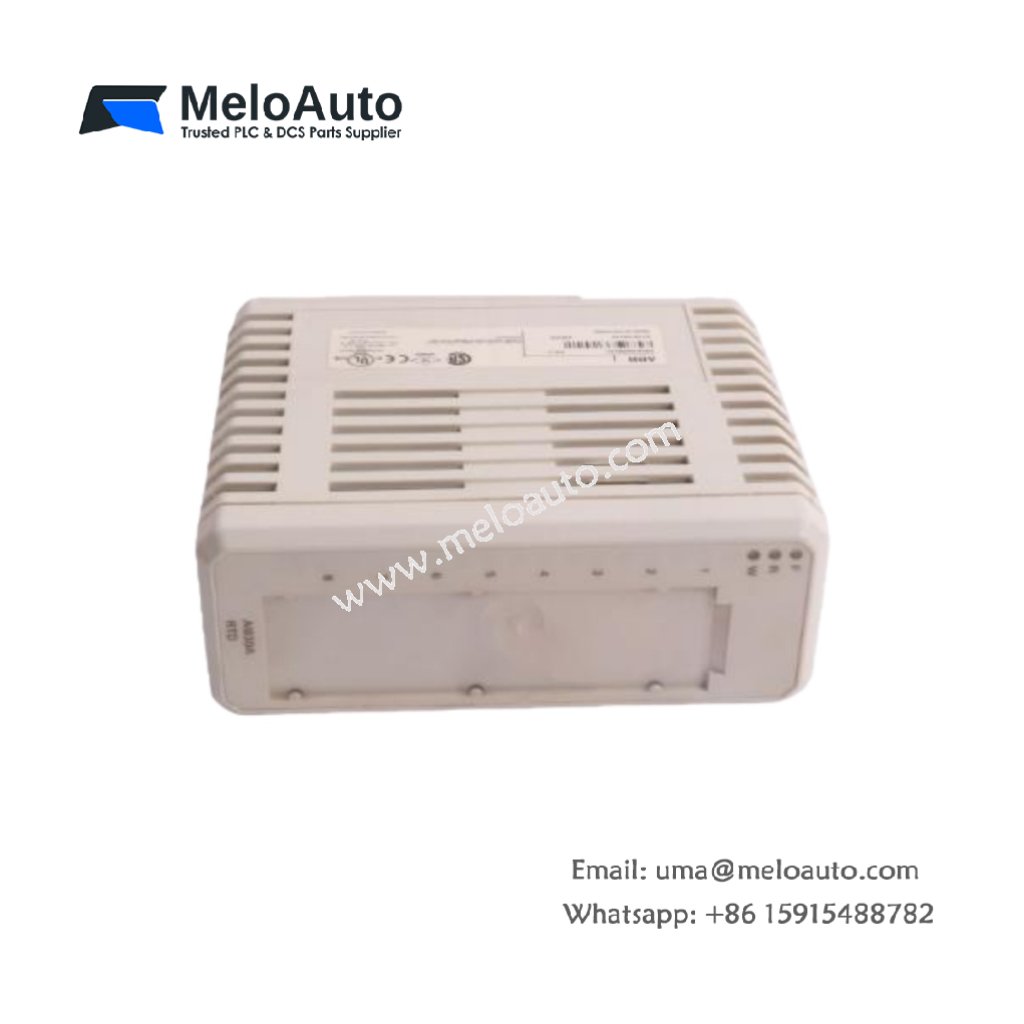

ABB AI830A 3BSE040662R1 Analog Input Module

Overview

The ABB AI830A 3BSE040662R1 is an advanced analog input module within the S800 I/O system. Specifically designed for temperature measurement using resistance temperature detectors (RTDs), this module offers 8 input channels and supports various RTD types such as Pt100, Pt500, Cu100, and Ni100. Due to its high accuracy and wide operating temperature range, the AI830A excels in demanding industrial applications, such as those in the petroleum, natural gas, chemical, power, and metallurgy industries.

Product Features

8 Input Channels: The module provides 8 independent channels, allowing flexible and reliable RTD connections for diverse temperature monitoring.
RTD Compatibility: It supports several RTD types, including Pt100, Pt500, Cu100, and Ni100, ensuring broad compatibility across various sensors.
High Accuracy: With ±0.1% full-scale accuracy, the AI830A guarantees precise temperature readings, even in critical applications.
Wide Temperature Range: The AI830A operates effectively in environments ranging from -40°C to +85°C, ensuring robustness and reliability.
Modular Design: The modular design allows easy integration with the S800 I/O system, enabling easy system expansion and maintenance.
Standards Compliance: This module fully complies with DIN 43701 standards, ensuring reliability and safety in industrial settings.

Applications

The ABB AI830A 3BSE040662R1 is highly suitable for various industrial applications, including:

Petroleum & Natural Gas: For temperature monitoring in pipelines, refineries, and extraction systems.
Chemical & Power Industries: To control temperature in reactors, turbines, and energy systems.
Metallurgy: For precise temperature control in steel production and high-temperature operations.

Technical Specifications

Specification	Details
Part Number	3BSE040662R1
Manufacturer	ABB
Product Type	Analog Input Module
Number of Channels	8 channels
RTD Types Supported	Pt100, Pt500, Cu100, Ni100
Measurement Accuracy	±0.1% Full-Scale
Resolution	0.01°C
Input Range	-200°C to +800°C
Response Time	2 seconds
Power Supply	24 VDC
Power Consumption	≤5 W
Dimensions (W x H x D)	45 mm x 111 mm x 119 mm
Weight	0.22 kg
Operating Temperature Range	-40°C to +85°C
Compliance	DIN 43701

Physical Dimensions and Environmental Tolerance

Dimensions: 45 mm x 111 mm x 119 mm
Weight: 0.22 kg
Operating Temperature Range: -40°C to +85°C, designed for demanding conditions
Power Supply: 24 VDC, ideal for industrial environments
Environmental Protection: The AI830A features robust construction to withstand harsh industrial conditions, ensuring long-term reliability and performance.
