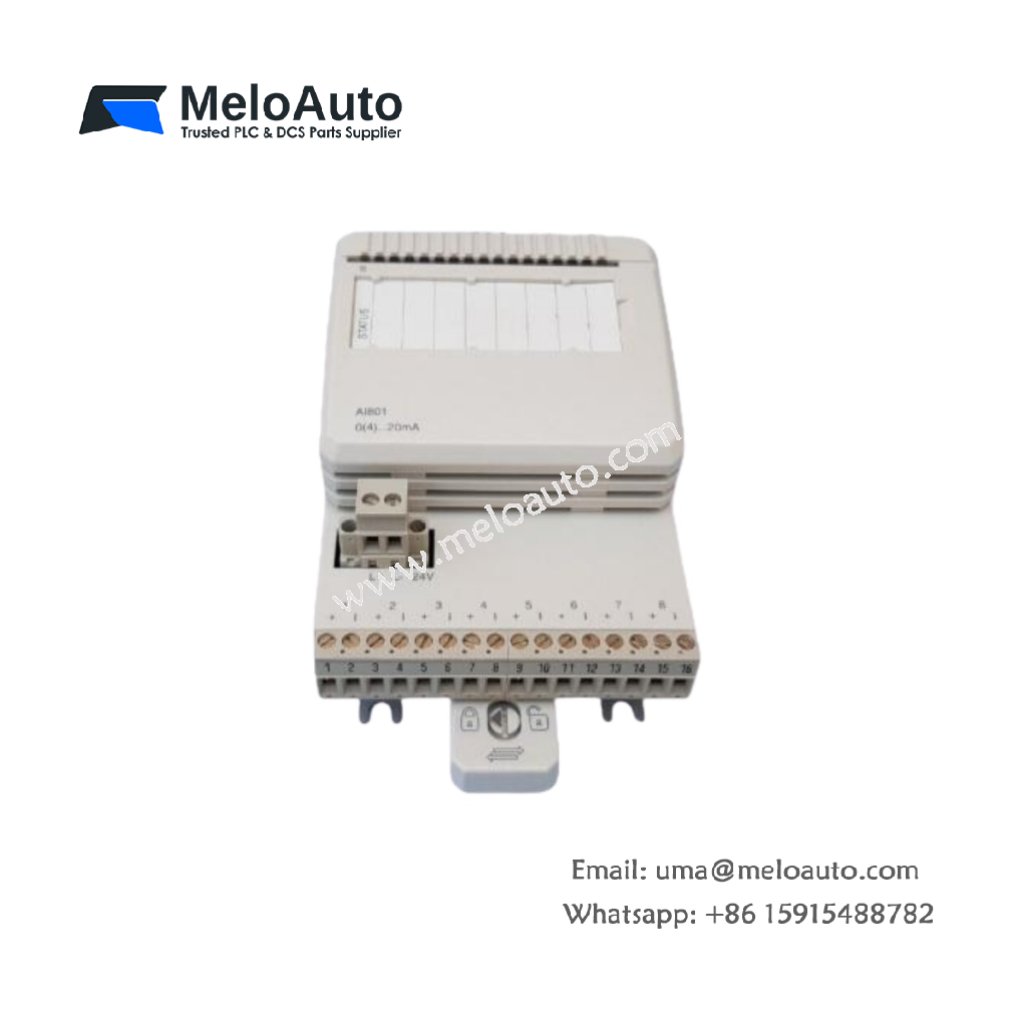

ABB AI801 3BSE020512R1 Analog Input Module

Overview

The ABB AI801 3BSE020512R1 Analog Input Module plays a critical role in industrial automation. It seamlessly converts 0–20 mA and 4–20 mA DC current signals into usable data for control systems. As part of the ABB S800 I/O series, this module guarantees accurate data acquisition and processing, ensuring reliable real-time monitoring in industrial applications.

Key Features

• 8 Input Channels: The module features 8 single-ended, unipolar current input channels, each capable of processing 0–20 mA and 4–20 mA signals.

• 12-Bit Resolution: With a 12-bit resolution, the AI801 ensures precise data conversion for critical system monitoring and control.

• Ground Isolation: It isolates input groups from ground to reduce noise and improve signal integrity.

• Protection Features: The module includes built-in protection against short circuits and overvoltage, safeguarding your system.

• HART Communication: Supports HART communication, enabling integration with HART devices for enhanced diagnostics and communication.

• Compact Integration: This module integrates smoothly into existing ABB S800 I/O systems, offering flexibility in system expansions.

Applications

You can utilize the ABB AI801 3BSE020512R1 in various industrial control applications, such as:

• PLC/DCS Systems: Use it for precise measurement and real-time control in programmable logic controllers (PLCs) and distributed control systems (DCSs).

• Process Monitoring: Ideal for monitoring and controlling sensors in temperature, pressure, or flow measurement systems.

• Automation Systems: It ensures smooth operation in industrial automation, offering reliable data for better decision-making and performance optimization.

Technical Specifications
