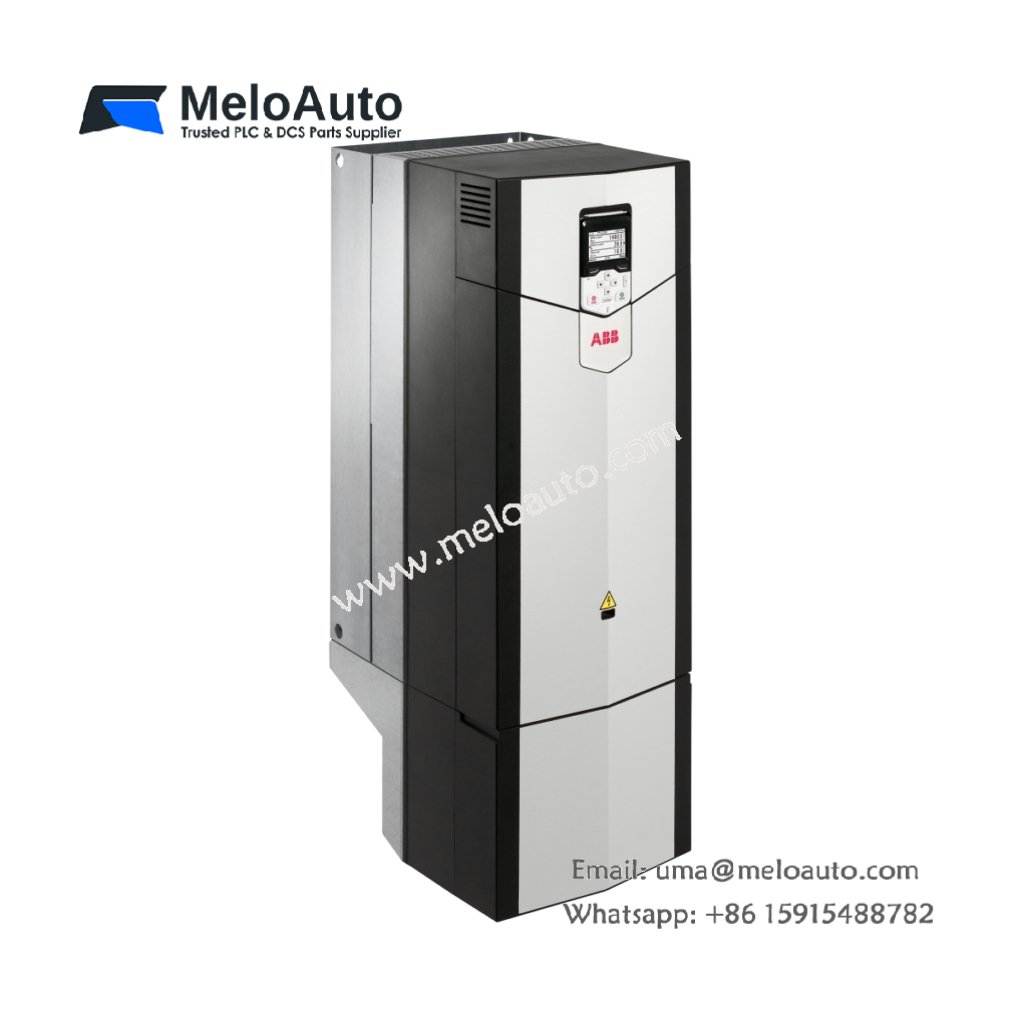

ABB ACS880-01-174A-7 Low Voltage AC Drive, 160kW 174A

Product Overview

The ABB ACS880-01-174A-7 is a wall-mounted low voltage AC industrial drive designed for demanding applications across multiple industries. With a rated power of 160 kW at 174 A and 690 V, it ensures reliable performance in sectors such as oil and gas, mining, metals, pulp and paper, chemicals, cement, marine, water treatment, and automotive. Its compact design, integrated harmonic filtering choke, and support for advanced fieldbus protocols provide high flexibility for system integration.

Key Features

Wall-mounted installation with optional cabinet mounting for flexibility.
Enclosure rating up to IP55, ensuring reliable operation in harsh environments.
Integrated choke for harmonic filtering, with options for EMC filter and brake chopper.
Supports communication protocols including CAN, PROFIBUS, PROFINET IO, EtherNet/IP, and Modbus.
Multiple I/O options: 2 analog inputs, 2 analog outputs, 6 digital inputs, and 2 digital outputs.
Efficient cooling and design ensure noise levels remain at 68 dB(A).

Technical Specifications

Parameter	Value
Manufacturer	ABB
Model	ACS880-01-174A-7
Product ID	3AUA0000115109
Rated Power (IEC)	160 kW
Rated Current (IEC)	174 A
Rated Voltage	525 … 690 V
Rated Power (UL)	200 Hp (Light Duty), 150 Hp (Heavy Duty)
Rated Current (UL)	180 A (Light Duty), 144 A (Heavy Duty)
Frame Size	R8
Efficiency	Up to 98.4 %
Frequency Range	47.5 … 63 Hz
Degree of Protection	IP21, NEMA Type 1
Control Interfaces	RS-485, USB, Industrial bus options
Analog I/O	2 AI / 2 AO
Digital I/O	6 DI / 2 DO
Altitude	Up to 4000 m
Operating Humidity	5 – 95 %
Sound Level	68 dB(A)
Standby Loss	83 W
Apparent Power Output	208 kVA

Energy Efficiency

The ACS880-01-174A-7 achieves exceptional energy performance, with efficiency levels reaching 98.4% at high load points. At 50 Hz and 100% load, system losses are only 2010 W, highlighting its suitability for continuous industrial use while minimizing energy consumption.

Dimensions and Weight

Height: 965 mm
Width: 300 mm
Depth: 386 mm
Net Weight: 68 kg

Country of Origin

Finland

Applications

The ABB ACS880-01-174A-7 is ideal for controlling pumps, fans, conveyors, cranes, compressors, centrifuges, mixers, elevators, and winches. Its rugged design, versatile connectivity, and comprehensive protection features make it a trusted choice for industries requiring high reliability and precise motor control.
