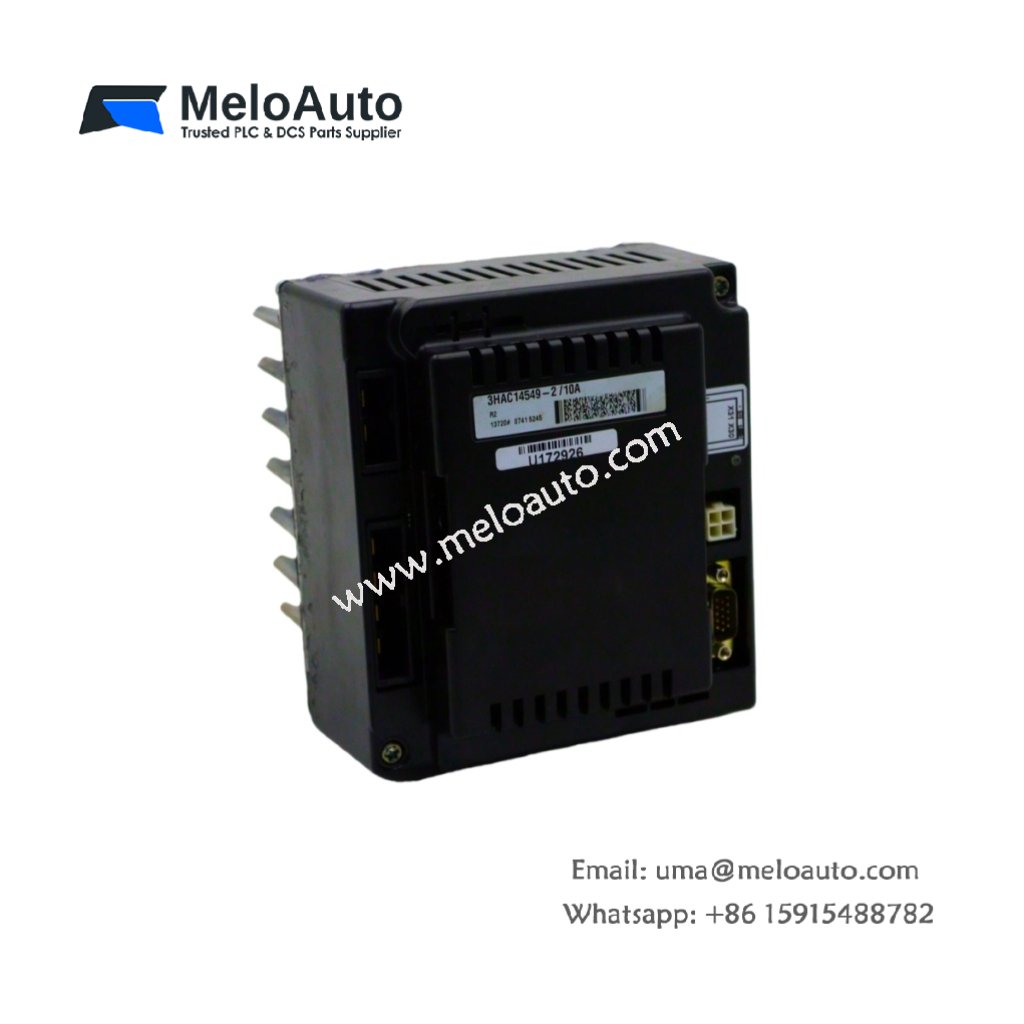

ABB 3HAC14549-3/10A Servo Drive Unit for Industrial Robots

Overview

The ABB 3HAC14549-3/10A is a highly efficient and compact servo drive unit designed for industrial robots. It manages the speed and torque of a servomotor, enabling precise control over robotic movements. This servo drive unit is ideal for applications that require high performance and reliability.

Key Features

Compact and Lightweight Design: The ABB 3HAC14549-3/10A offers a space-saving solution, making it easy to integrate into robots with limited space.
High-Performance Capability: It delivers up to 10A of continuous current and a peak current of 20A, supporting demanding industrial applications.
Precise Control: This drive unit ensures smooth and accurate robot movements, contributing to high-quality performance in automation tasks.
Reliable Operation: Built to withstand challenging industrial environments, the ABB 3HAC14549-3/10A guarantees long-term durability.
Versatile Compatibility: It is compatible with a range of ABB servo motors, offering flexibility for different applications.

Technical Specifications

Parameter	Specification
Model Number	3HAC14549-3/10A
Continuous Current	10A
Peak Current	20A
Voltage	380-480V
Frame Size	Compact design for space efficiency
Compatibility	Compatible with a wide range of ABB servo motors
Operating Temperature	-10°C to +55°C
Weight	1.5 kg (Approx.)

Applications

The ABB 3HAC14549-3/10A servo drive unit is ideal for various industrial robot applications, including:

Arc Welding: Provides precise control for welding robots, ensuring accurate results.
Material Handling: Efficiently powers robots used in material transportation.
Assembly: Supports high-speed, high-accuracy assembly tasks.
Painting: Enables robots to carry out consistent and accurate painting operations.
Machine Tending: Ideal for robotic machine tending tasks, enhancing productivity.
Pick and Place: Ensures swift and reliable pick-and-place operations in production lines.
