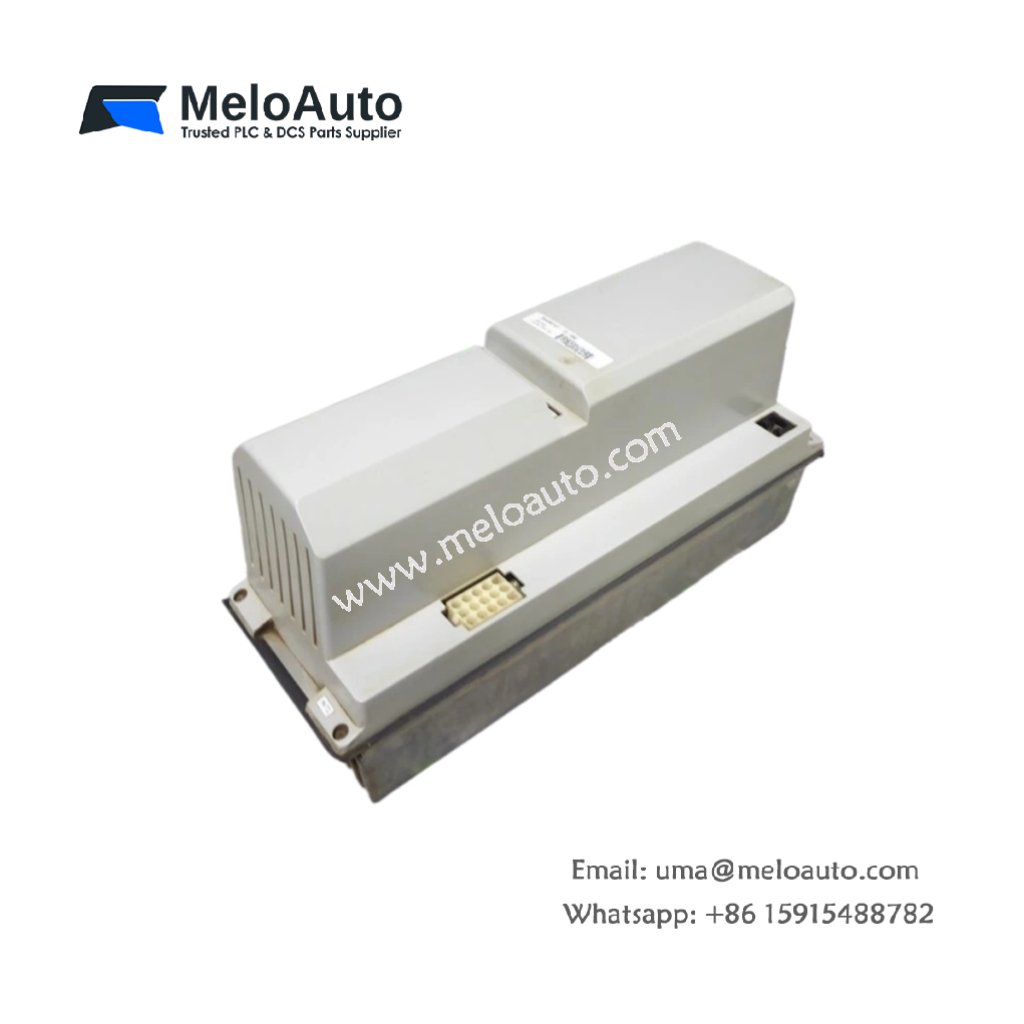

ABB 3HAB8101-13/08C – Servo Drive Module for Motion Control

The ABB 3HAB8101-13/08C regulates speed and torque for AC servo motors. This drive module measures 310 mm in height and 70 mm in width. It has a depth of 210 mm, so it fits standard 19-inch racks easily. The unit weighs 2.8 kg, making mounting secure and stable.

Internal Power Stage and Component Layout

Each IGBT handles up to 15 amps of continuous current. The ABB 3HAB8101-13/08C also includes a dedicated gate driver board for switching control. Three current sensors monitor phase outputs in real time for accurate regulation. The module stores 1500 µF of capacitance on its DC link bus.

Input Power and Output Specifications

You must supply 400V AC three-phase power to the main input terminals. The drive accepts a voltage tolerance of ±10 percent from this nominal value. The ABB 3HAB8101-13/08C delivers 8.5 kVA of continuous output power. It provides 12.7 amps of continuous current to the connected motor. For peak loads, the unit supplies 25.4 amps for up to 3 seconds.

Control Interfaces and Feedback Connections

You will find one resolver interface port on the front panel of this drive. This port accepts feedback signals from a standard resolver transducer. The ABB 3HAB8101-13/08C also provides two digital input channels for enable and reset functions. One relay output indicates drive status as ready or faulted. A 9-pin D-sub connector handles analog command signals of ±10V DC.

Energy Storage and Regenerative Handling

The DC link capacitance of 1500 µF absorbs regenerative energy from decelerating motors. This storage reduces voltage spikes on the internal DC bus significantly. The ABB 3HAB8101-13/08C also includes a braking chopper for excess energy dissipation. An external braking resistor can connect to the dedicated terminals for heavy loads. The drive stores no backup battery for parameters, so you should save settings externally.

Below is a complete summary of its technical specifications.

The ABB 3HAB8101-13/08C operates reliably from 5°C to 45°C ambient temperature. You can mount this drive vertically to ensure proper natural convection cooling. The module tolerates humidity up to 85 percent without any condensation issues. Consequently, this servo drive suits robotic axes and precision conveyor applications perfectly.
