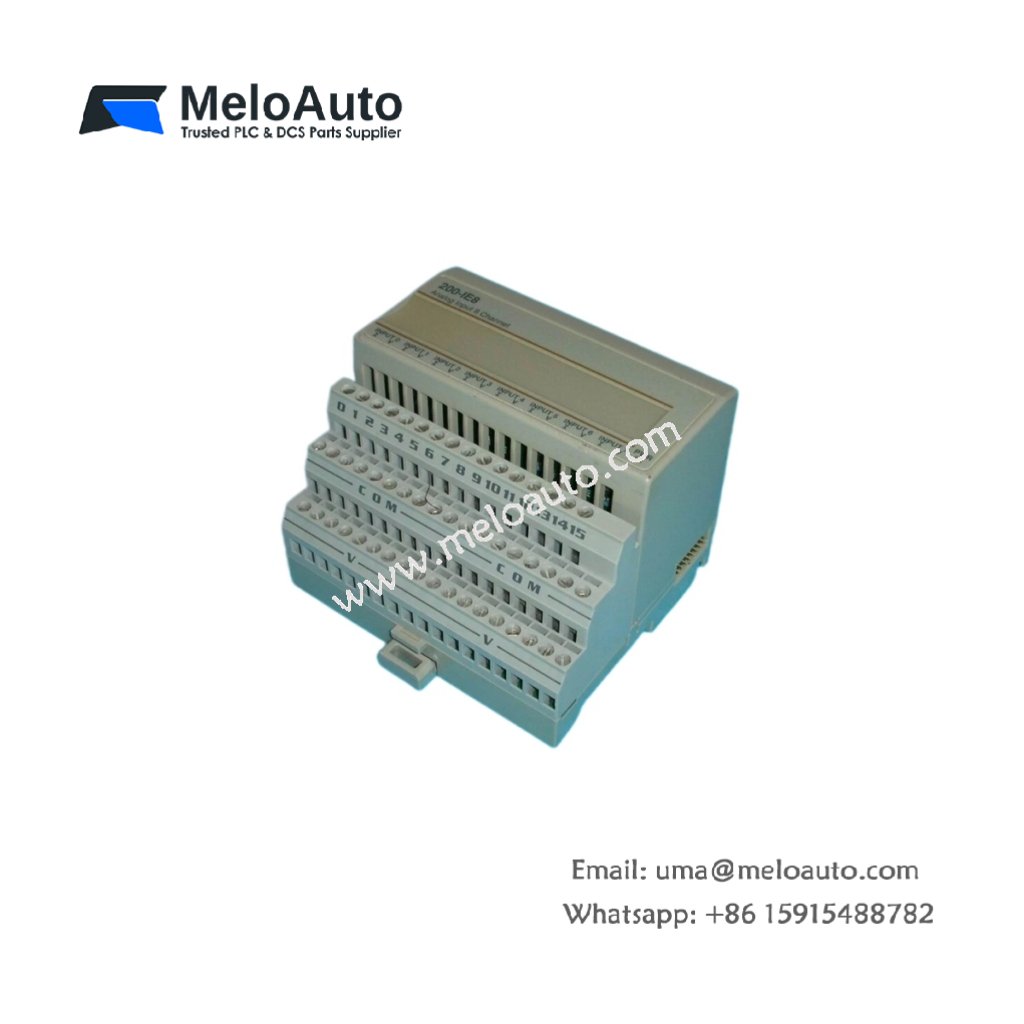

The 200-IE8 converts analog field signals into digital values for ABB controllers. This module reads voltage or current signals from sensors and transmitters. You can rely on it for temperature, pressure, or flow monitoring tasks.
Key Technical Parameters
The table below lists all essential technical specifications for this analog input module.
| Specification | Details |
|---|---|
| Part Number | 200-IE8 |
| Product Type | Analog Input Module |
| Compatibility | ABB distributed I/O systems |
| Number of Channels | 8 differential inputs |
| Input Range (Voltage) | 0 to 10V, ±10V, 0 to 5V, ±5V |
| Input Range (Current) | 0 to 20 mA, 4 to 20 mA |
| Resolution | 16 bits |
| Accuracy | ±0.1% of full scale |
| Conversion Time | 5 ms per channel |
| Input Impedance (Voltage) | ≥ 1 MΩ |
| Input Impedance (Current) | 250 Ω |
| Isolation | 1500V AC (channel to bus) |
| Dimensions (W x H x D) | 160 mm x 120 mm x 45 mm |
| Weight | Approx. 0.36 kg |
| Terminal Type | Removable screw connector |
| Power Supply | 5V DC from backplane + 24V DC external |
| Current Consumption | 250 mA (logic) + 100 mA (field) |
| Operating Temperature | 0°C to 55°C |
Physical Characteristics and Installation
This analog input module weighs approximately 0.36 kg for standard rack mounting. Its dimensions measure 160 mm x 120 mm x 45 mm for distributed I/O chassis. First, slide the 200-IE8 into a free slot in your I/O rack. Then, connect your sensors to the removable screw terminals. Finally, secure the module using the built-in locking latches. LED indicators on the front confirm power and communication status.
Input Ranges and Signal Conversion
The 200-IE8 provides 8 differential input channels for noise-resistant measurements. Each channel accepts multiple voltage ranges including 0 to 10V, ±10V, 0 to 5V, or ±5V. For current loops, you can select 0 to 20 mA or 4 to 20 mA. The 16-bit resolution delivers highly precise digital values for critical process control. High input impedance for voltage channels minimizes signal loading effects.
Accuracy and Conversion Speed
This module achieves an accuracy of ±0.1% of full scale for reliable measurements. Each analog channel converts in 5 ms for responsive monitoring. The total scan time for all eight channels reaches 40 ms. 1500V AC isolation separates the field circuits from the backplane bus. Consequently, this design protects the controller from ground loops and electrical noise. The 200-IE8 requires both 5V DC logic power and 24V DC field power.
