ABB 1SBP260137R1001 07DK93 Display Module

Technical Specifications and Display Features

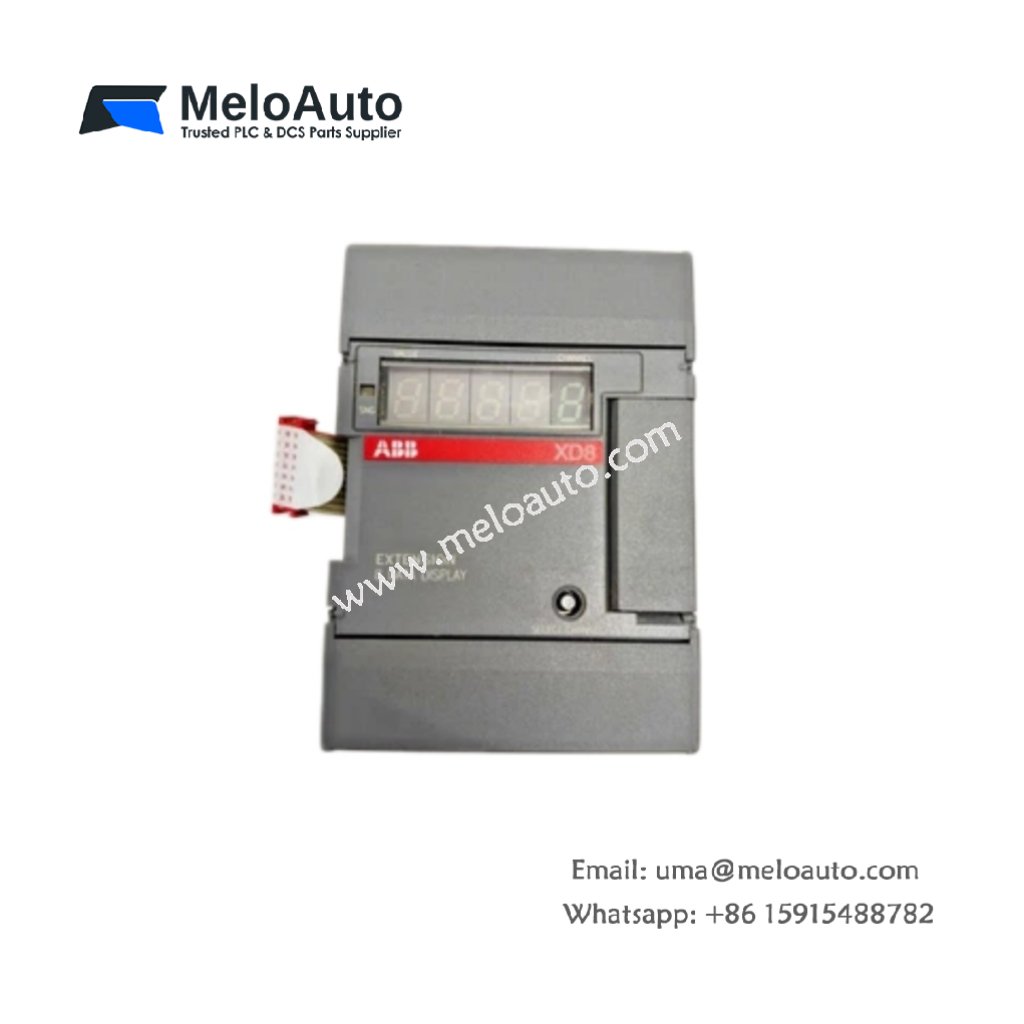

The ABB 1SBP260137R1001 data display extension module, also known as the 07DK93, serves as a compact operator interface for the ABB Advant Controller 31 (AC31) series. This module provides local data visualization and monitoring capabilities for distributed automation systems. It features a four-character alphanumeric LED display for presenting process values, parameters, and diagnostic information. The unit operates on a 24V DC power supply with a typical current consumption of 40 mA. Its dimensions measure approximately 90 mm x 32 mm x 45 mm (W x H x D), and it weighs about 0.15 kg. The module connects directly to the AC31 central unit or remote I/O station via the system bus.

Parameter	Specification
Manufacturer	ABB
Model Number	1SBP260137R1001 / 07DK93
Product Family	Advant Controller 31 (AC31)
Display Type	4-character alphanumeric LED
Display Height	14 mm (character)
Display Brightness	> 500 cd/m²
Data Protocol	CS31 fieldbus (compatible with AC31)
Power Supply	24V DC (±20%)
Current Consumption	40 mA (typical)
Protection Rating	IP20
Mounting	DIN rail
Dimensions (W x H x D)	90 x 32 x 45 mm
Weight	0.15 kg
Operating Temperature	-20°C to +60°C
Storage Temperature	-40°C to +85°C
Country of Origin	Switzerland
Product Status	Active

Functional Capabilities

The 1SBP260137R1001 module actively displays real-time process data from the AC31 PLC, including measurements, counters, and setpoints. It supports two independent display values with editable parameters via integrated pushbuttons. Moreover, the unit enables local parameter adjustments without requiring a separate programming terminal. It provides clear visual status indication through its high-brightness LED display, ensuring readability in various lighting conditions. Additionally, the module integrates seamlessly with the CS31 fieldbus for direct data exchange with the central unit. Consequently, operators can view critical process information directly at the installation site.

Application Scenarios

This data display extension module suits applications requiring local readout of key process variables. It integrates with AC31 CPU units such as 07 KR 51 and 07 KR 91 for small to medium-sized automation tasks. Typical applications include temperature monitoring systems, small packaging machines, and building automation panels. The ABB 07DK93 also serves as a cost-effective HMI alternative for simple parameter viewing and adjustment. Its compact size makes it ideal for space-constrained control cabinets and distributed I/O stations.
