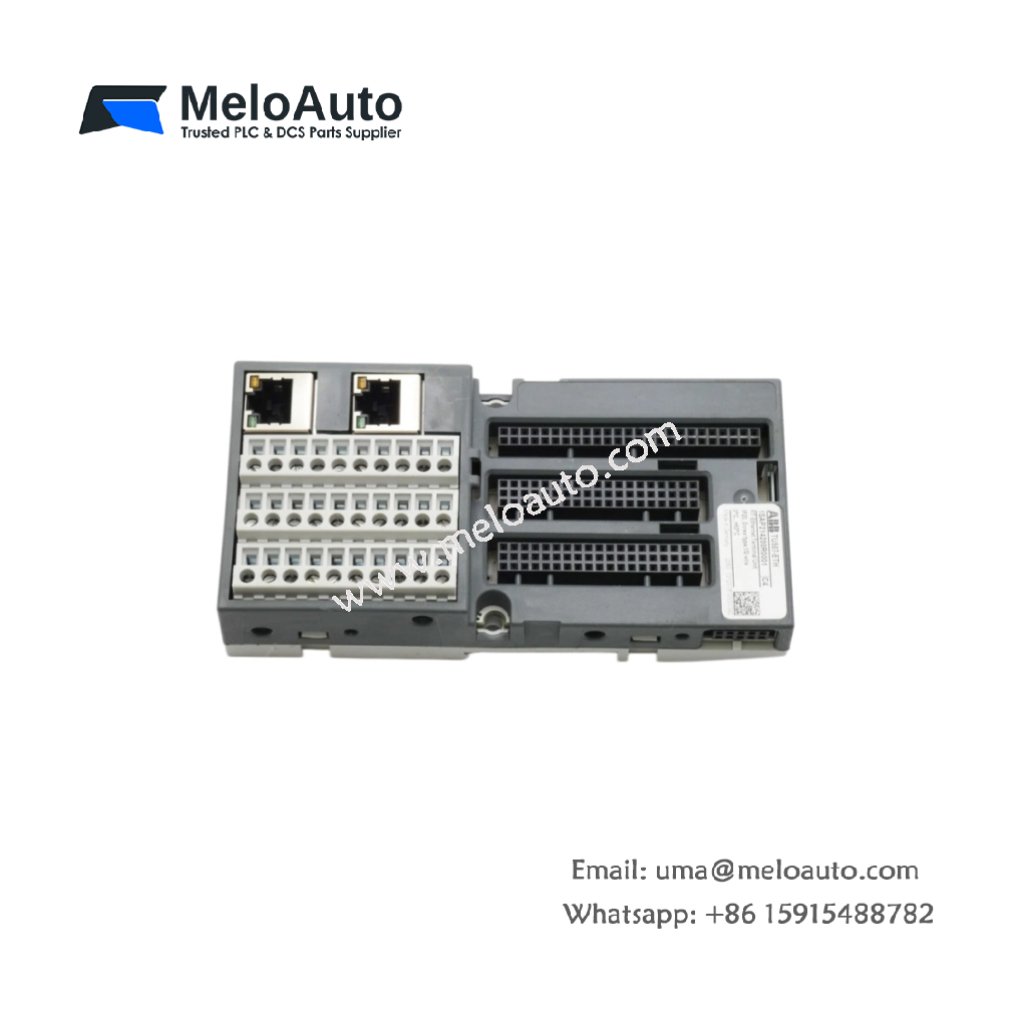

ABB 1SAP214200R0001 Interface Terminal Unit

The 1SAP214200R0001 connects field wiring to ABB AC500 I/O modules. This terminal unit simplifies signal termination and cable management in control cabinets. You can use it for discrete or analog field device connections.

Key Technical Parameters

The table below lists all essential technical specifications for this interface terminal unit.

Specification	Details
Part Number	1SAP214200R0001
Product Type	Interface Terminal Unit
Compatibility	ABB AC500 I/O modules
Number of Terminals	20 screw terminals
Wire Gauge Range	0.2 mm² to 2.5 mm² (AWG 24-14)
Terminal Pitch	5.08 mm
Rated Voltage	250V AC / 30V DC
Rated Current	10 A per terminal
Dimensions (W x H x D)	120 mm x 75 mm x 45 mm
Weight	Approx. 0.15 kg
Connection Type	Removable pluggable connector
Housing Material	Polyamide (PA66)
Flammability Rating	UL94 V-0
Operating Temperature	-25°C to 70°C

Physical Characteristics and Installation

This interface unit weighs approximately 0.15 kg for lightweight DIN rail mounting. Its dimensions measure 120 mm x 75 mm x 45 mm for compact cabinet fit. First, clip the 1SAP214200R0001 onto a standard 35 mm DIN rail. Then, connect your field wires to the 20 screw terminals. Finally, plug the unit directly into your AC500 I/O module. The removable connector allows easy wiring without detaching the base unit.

Terminal Specifications and Electrical Ratings

The 1SAP214200R0001 provides 20 screw terminals for field signal wiring. Each terminal accepts wire gauges from 0.2 mm² to 2.5 mm². The terminal pitch measures 5.08 mm for comfortable access with standard tools. Each contact carries a rated current of 10 A. The rated voltage reaches 250V AC or 30V DC. Consequently, this unit suits both power and signal applications.

Material Properties and Environmental Limits

The housing uses polyamide PA66 for excellent mechanical strength. A UL94 V-0 flammability rating ensures fire safety in control panels. The 1SAP214200R0001 operates reliably between -25°C and 70°C. Therefore, it performs well in harsh industrial environments. The pluggable design speeds up module replacement and maintenance tasks.
