ABB 086363-002 Power Supply Module

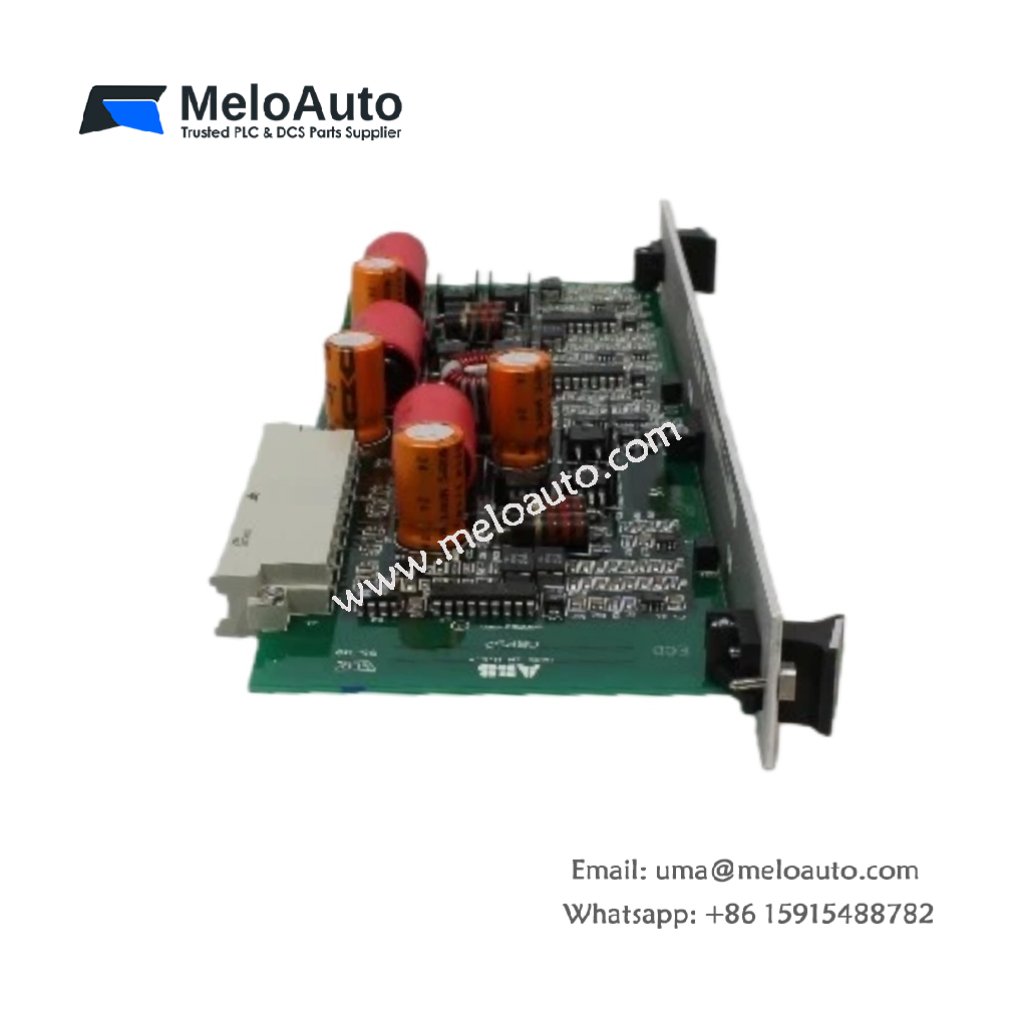

The ABB 086363-002 OSPS2 circuit board plays a vital role in managing power supplies for industrial automation systems. It boasts a compact design, which maximizes space efficiency while maintaining excellent performance under varying load conditions. As a result, this power supply module ensures dependable power distribution within ABB’s control systems.

In contrast to the ABB SPAU130C-AA, which specializes in protection relays, the 086363-002 OSPS2 focuses primarily on efficient power management. Thanks to its compact design, it fits better in space-limited environments, unlike the ABB Cl534V04, which may require more space.

Key Specifications of 086363-002 OSPS2

Parameter	Specification
Product Type	Power Supply Module
Rated Input Voltage	38 VDC
Overload Current	5-40 mA
Power Supply Function	Specialized power management
Mounting Type	Door-mounted control card
Connections	Hinges side for cable routing
Compatibility	Inverter Unit (iNU)
Additional Components	A4 Pulse Amplifier Card
Enclosure Type	Compact and robust design

Design and Functionality

The 086363-002 OSPS2 is specifically designed to integrate seamlessly into ABB’s inverter units (iNU). You can easily mount it on the door, making it accessible for maintenance and service. Moreover, all connections are located on the hinge side, reducing the flexing of cables when the door is opened.

In addition, the 086363-002 OSPS2 features an A4 Pulse Amplifier Card, which plays a key role in the operation of the inverter. The part number for the Pulse Amplifier Card varies depending on the drive’s rating, ensuring compatibility across different system configurations.

Mounting and Installation

You can mount on the back of the door. All connections are conveniently located along the hinge side, keeping cables secure. The design ensures flexible and accessible cable routing, minimizing the risk of damage and extending the module’s service life.

Power and Performance

Rated Input Voltage: 38 VDC
Overload Current: 5-40 mA
Power Supply Type: Specialized power management for industrial systems

Applications and Usage

The ABB 086363-002 OSPS2 serves as a crucial element in power supply management within ABB’s control systems. This module excels in industrial automation environments, providing reliable performance in demanding conditions. Its compact form factor and high efficiency make it ideal for both small and large-scale industrial systems.

Product Origin: Sweden
Dimensions: 17.8 cm x 5.1 cm x 20.3 cm
Weight: 0.2 kg
