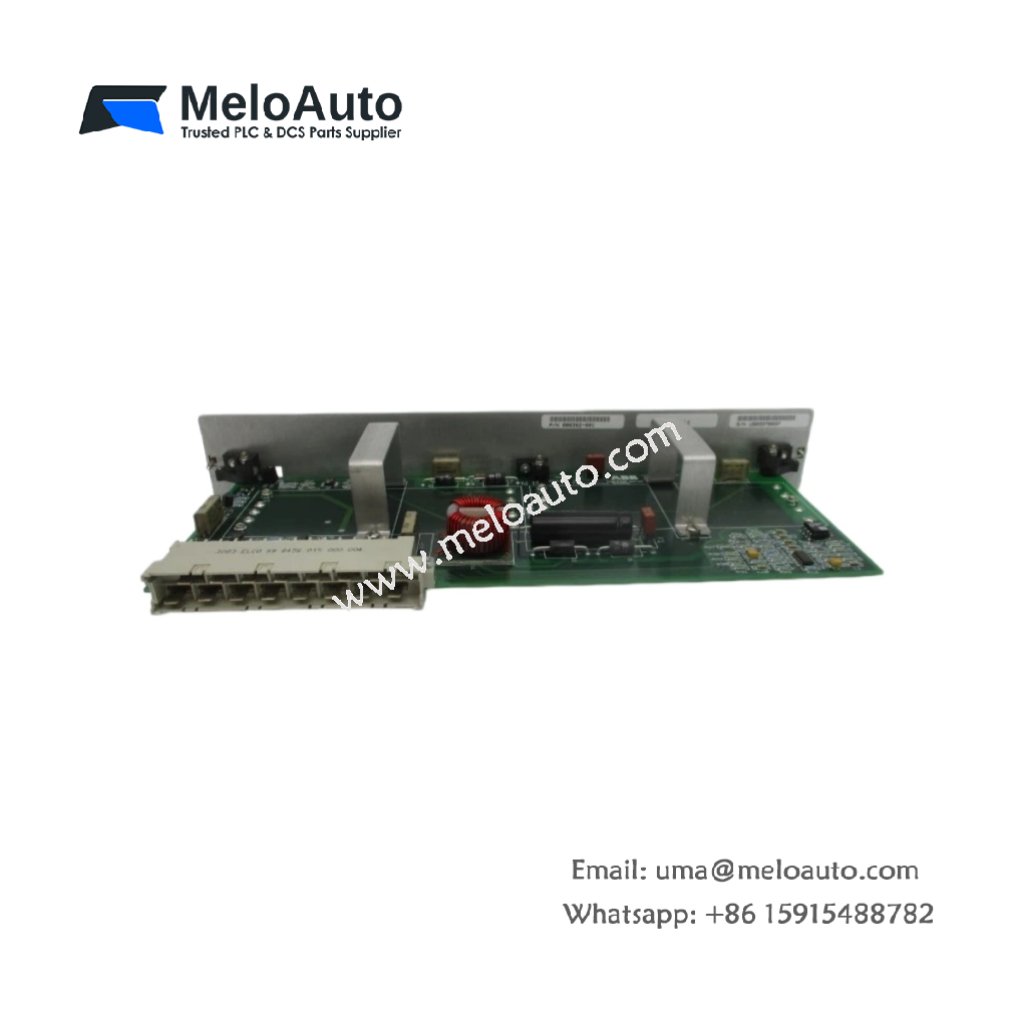

ABB 086362-001 Power Supply Module for Industrial Control

The ABB 086362-001 delivers stable DC power to PLC racks and field devices. You can install this unit directly into a standard 19-inch subrack. It converts AC mains voltage into regulated 24 V DC output. This module suits ABB Advant and MOD 300 automation systems.

Technical Specifications and Hardware Configuration

This power supply module measures 267 mm in height. Its width reaches 31 mm, and the depth equals 303 mm. The ABB 086362-001 weighs approximately 1.8 kilograms. A single internal PCB carries all rectification and regulation circuits. The module contains two large electrolytic capacitors for energy storage. These capacitors smooth voltage ripples and provide hold-up during brief drops. One 3-pin terminal block accepts AC input wiring. A separate 2-pin connector delivers the DC output to the backplane.

Electrical Ratings and Performance Characteristics

The ABB 086362-001 accepts input voltages from 100 V AC to 240 V AC. It operates at line frequencies of 50 Hz or 60 Hz automatically. This module delivers a nominal output of 24 V DC at 5 A continuously. The output ripple stays below 50 mV peak-to-peak at full load. Efficiency reaches 85 percent under typical operating conditions. Consequently, this unit produces minimal heat inside the cabinet. Overload protection automatically shuts down the output during short circuits.

Installation and Operational Guidelines

You must slide this module into a dedicated subrack slot firmly. Transitioning to wiring, use 1.5 mm² stranded wire for the AC terminals. A green front LED indicates normal output voltage presence. The module requires 50 mm of free space for airflow around it. For safety, disconnect mains power before removing the unit. The operating temperature range sits between 0°C and 50°C.
