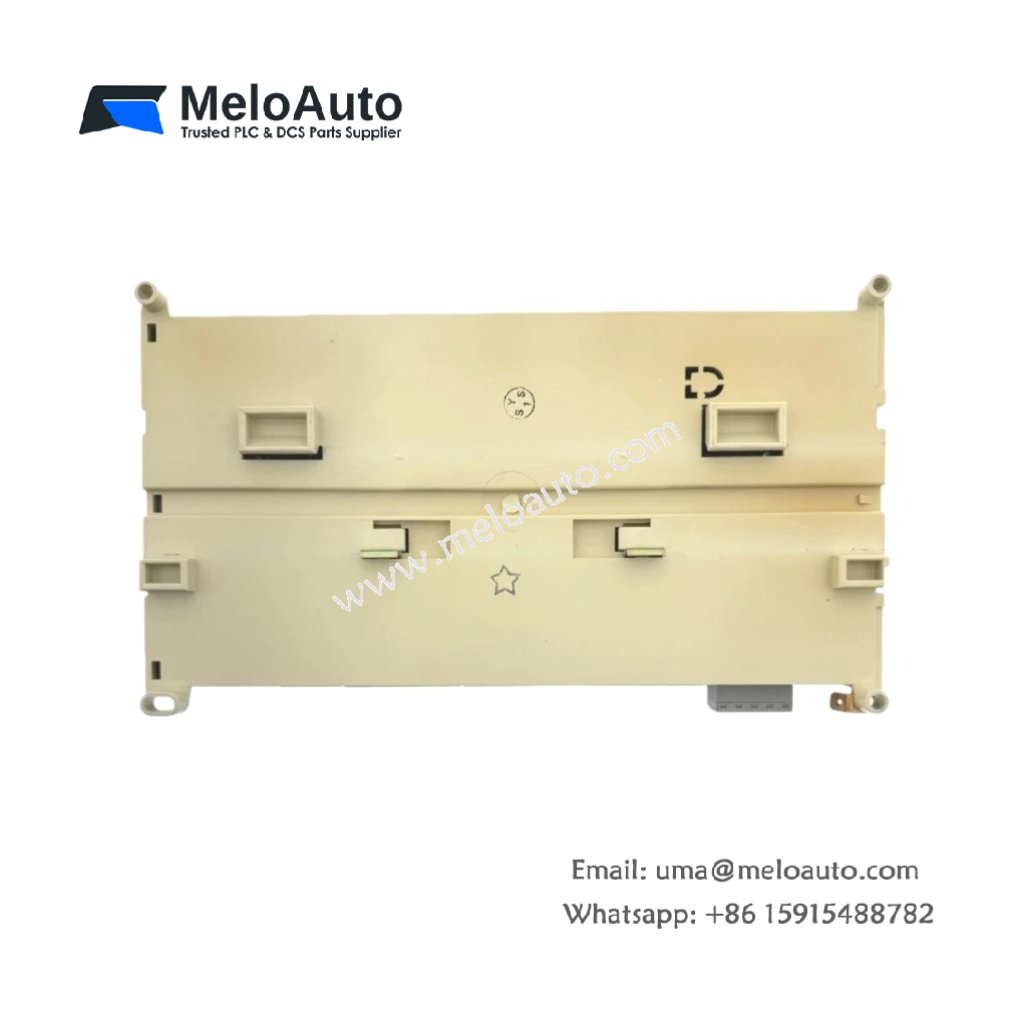

ABB 07KT97D GJR5253000R0272 Profibus SPS Controller

Product Overview

The ABB 07KT97D GJR5253000R0272 is a high-performance SPS (Sequential Control) controller equipped with Profibus. Designed for industrial automation, it integrates seamlessly into modern control systems, offering efficient communication and control capabilities. With advanced features, it ensures robust functionality for power distribution, industrial applications, and residential settings.

Key Features

• Microprocessor-Based Protection: The device offers reliable, microprocessor-controlled protection to safeguard against faults.
• Contact-Free Mechanism: Utilizes a spring-loaded mechanism for consistent operation without the risk of wear or malfunction.
• Remote Monitoring & Control: Provides remote control and monitoring, allowing for easy integration into larger systems.
• Integrated Ground Fault Protection: Ensures safety by detecting and managing ground faults automatically.

Technical Specifications

Electrical Specifications

• Nominal Voltage: 690 V
• Nominal Current: 2500 A
• Breakdown Power: 65 kA
• Operating Temperature: -25°C to +55°C
• Storage Temperature: -25°C to +75°C

Connectivity

• Fieldbus Interfaces: Ethernet TCP/IP, Profibus DP (Master or Slave)
• Digital Inputs: 24 (DC 24V)
• Digital Outputs: 16 (DC 24V)
• Analog Inputs: 8 channels
• Analog Outputs: 4 channels

Memory & Processing

• User Data Memory: 256 kB (Flash EPROM)
• User Program Memory: 480 kB (Flash EPROM, non-volatile RAM, SMC)
• Maximum Input Frequency: 50 kHz
• Maximum Number of I/Os: 228 analog outputs, 232 analog inputs, 1024 digital I/Os

Additional Features

• Real-Time Clock: Yes
• Serial Ports: 2 (RS232, Modbus Master or Slave)
• Programming Software: AC1131
• Parallel Extension Support: Yes
• RoHS Compliant: Yes
• UL Certified: Yes
• CSA Certification: 1SAA960000-1102

Product Dimensions & Weight

• Dimensions: 85 mm (depth)
• Weight: 1 kg (net), 1.2 kg (gross)

Country of Origin

• Made in Germany

Applications

• Energy Distribution Networks: Ideal for controlling and protecting electrical circuits in large industrial plants.
• Industrial Plants: Optimized for use in factory automation and machinery control.
• Commercial Buildings: Suitable for building automation systems requiring high control precision.
• Residential Buildings: Can be used in advanced home automation systems for security and energy management.
