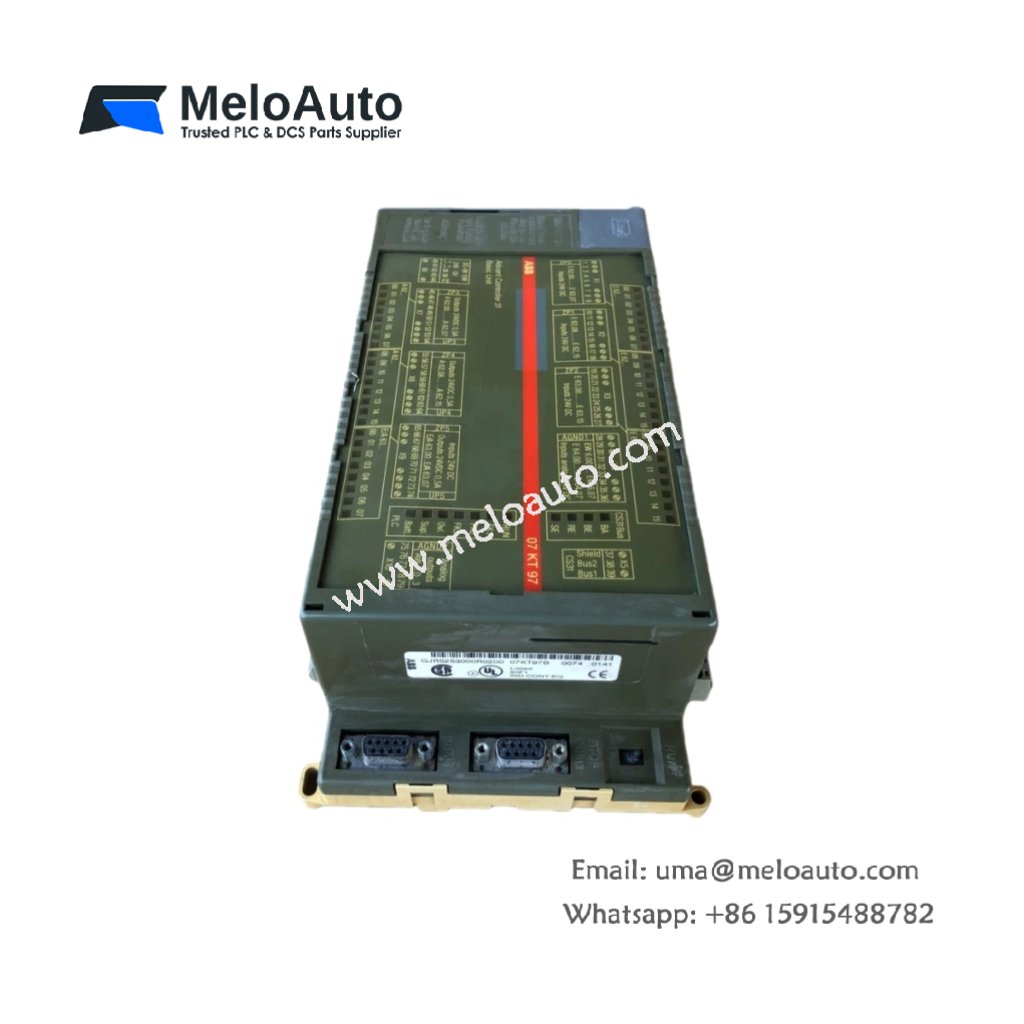

ABB 07KT97D 07KT97B 07KT97C GJR5253000R0162 ARCNET Communication Module

Product Overview

The ABB 07KT97D 07KT97B 07KT97C GJR5253000R0162 are industrial automation modules specifically designed for seamless ARCNET communication over coaxial cables. These units play a crucial role in ABB control systems, ensuring high-speed data transmission and reliable network communication across industrial processes.

Key Features & Specifications

• Connector Type: The module features an X4 BNC connector for robust and secure connections.
• Communication Interface: Utilizes ARCNET for efficient communication via coaxial cable, ensuring quick and reliable data exchange.
• System Cable: It is compatible with RG-62/U coaxial cable (Characteristic Impedance: 93 Ω), a proven choice for stable communication over long distances.
• Maximum Cable Length: The system supports up to 305 meters for an ARCNET bus, enabling the connection of up to 8 stations in a distributed network.
• Status Indicators:
  • Green LED (BS): Shows when the controller is active and the PLC is performing read/write operations.
  • Green LED (TX): Indicates that the transmit function is active, signaling the PLC is sending data over ARCNET.
• Electrical Isolation:
  • Isolated from power supply voltage to ensure safe operation.
  • Isolated from input/output signals to protect devices from electrical surges.
  • Isolated from COM1/COM2 interfaces, preventing any electrical interference between connected devices.

Compatible Control Systems

• ABB Advant Controller 31
• ABB Advant OCS

These models are fully compatible with the 800xA for Symphony Plus Harmony, a distributed process management system that integrates seamlessly with Harmony control units. This setup allows for the monitoring and control of various process variables, such as flow rate, temperature, and pressure, within a Windows-based environment.

Product Dimensions and Weight

• Dimensions: 11.0″ x 4.0″ x 6.0″ (27.9 cm x 10.2 cm x 15.2 cm)
• Weight: 1 lb 9 oz (0.7 kg)

Shipping Information

• The ABB 07KT97D 07KT97B 07KT97C GJR5253000R0162 modules are designed for efficient shipping, with dimensions and weight optimized for cost-effective delivery.

Additional Information

• The module functions within a network to provide distributed process control, allowing technicians to control and monitor analog and digital devices connected to the system via Harmony control units. The entire system operates in a Windows environment on standard PC hardware, providing flexibility and ease of use.
