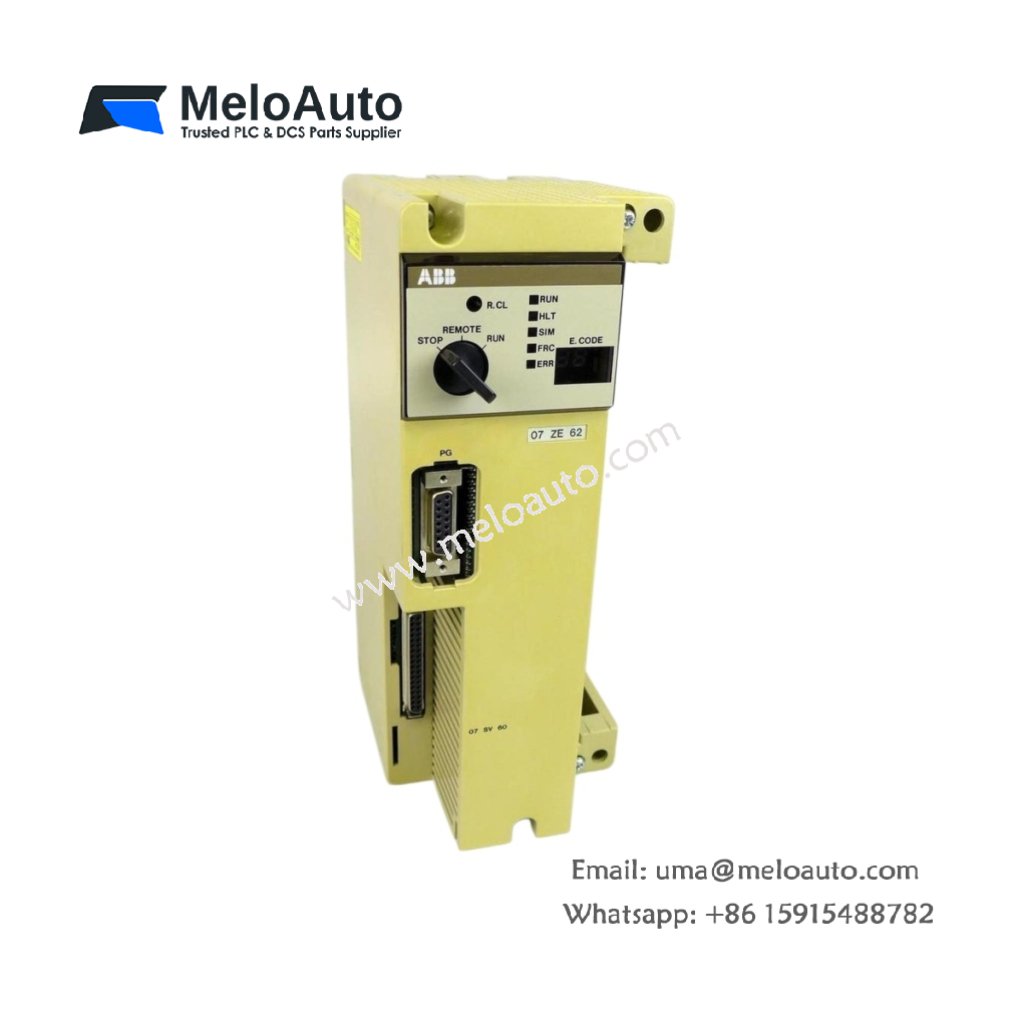

ABB 07 ZE 62 R201 – Central Unit for Advant Controller Systems

The ABB 07 ZE 62 R201 serves as the main processing core for Advant automation platforms. This central unit measures 230 mm in width and 180 mm in height. It has a depth of 85 mm, so it fits standard 19-inch racks easily. The unit weighs 1.2 kg, making mounting on DIN rails secure.

Processor Architecture and Memory Configuration

This central unit contains four separate circuit boards inside its metal housing. One board holds the main CPU, while another manages I/O communication. The third board stores system firmware, and the fourth handles power regulation. The ABB 07 ZE 62 R201 includes 8 MB of SRAM for program execution. It also provides 4 MB of flash memory for persistent data retention.

Energy Storage and Power Specifications

The unit stores 470 µF of capacitance across its primary voltage rails. This storage rides through supply interruptions lasting up to 15 milliseconds. The ABB 07 ZE 62 R201 draws 350 mA at 24V DC during full operation. Therefore, total power consumption reaches 8.4 watts under normal load. It includes a replaceable lithium battery for clock and memory backup.

Communication Interfaces and Expansion Ports

You will find one Ethernet port on the front panel of this central unit. This port supports 10/100 Mbps for plant network connectivity. The ABB 07 ZE 62 R201 also includes one RS-232 port for local programming. A second RS-485 port supports Modbus RTU for legacy device integration. A 40-pin expansion bus allows up to 32 I/O modules to attach.

Environmental Tolerance and Programming Features

You can mount this central unit horizontally inside any control cabinet. The device operates reliably from 0°C to 55°C ambient temperature. It tolerates humidity levels up to 90 percent without any condensation issues. The ABB 07 ZE 62 R201 withstands vibration up to 1g from 10 to 55 Hz. It supports online programming, so you can modify logic without stopping production.

Below is a complete summary of its technical specifications.

The ABB 07 ZE 62 R201 replaces older central units in Advant Controller 70 systems. You do not need any special adapters or additional configuration tools. This unit also supports redundant communication paths for high availability applications. Therefore, it suits critical processes like chemical batch control and water treatment.
