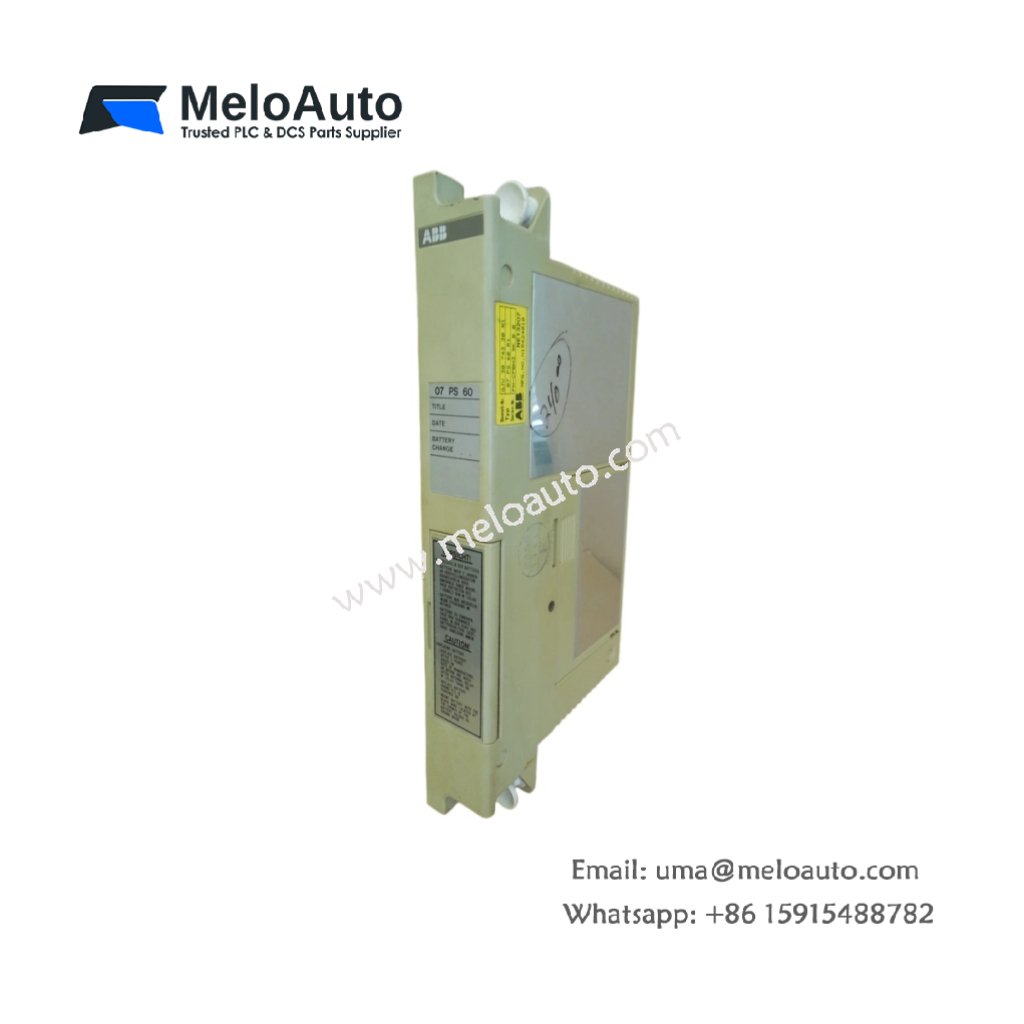

ABB 07 PS 60 R1: Reliable Program Storage for Procontic Systems

The ABB 07 PS 60 R1 expands memory capacity for Procontic programmable controllers. You can install this module directly into any standard memory slot. It retains user programs and critical configuration data during power loss. This solution fits applications requiring secure, long-term logic storage.

Technical Specifications and Internal Architecture

This memory module measures 130 mm in height. Its width reaches 20 mm, and the depth equals 110 mm. The ABB 07 PS 60 R1 weighs approximately 0.18 kilograms. A single internal PCB holds all memory and power management circuits. The module uses static RAM technology for fast read and write operations. It includes one replaceable lithium battery for energy storage. This battery preserves all data when the controller loses power. A 40-pin edge connector interfaces directly with the Procontic backplane.

Memory Capacity and Battery Performance

The ABB 07 PS 60 R1 provides 16 KB of user program storage. This capacity handles approximately 1000 ladder logic rungs comfortably. The lithium battery delivers three years of typical service life. A front-panel LED signals low battery voltage two months in advance. Consequently, you can plan maintenance without unexpected memory loss. The module also retains 256 bytes of retentive flag data.

Installation and Data Protection Features

You must insert this module firmly into a dedicated Procontic memory slot. Transitioning to battery replacement, remove the module from the rack first. The module includes a write-protect switch on its front face. This switch prevents accidental program overwrites during normal operation. For maximum safety, always create a backup before changing the battery. The operating temperature range sits between 0°C and 55°C.
