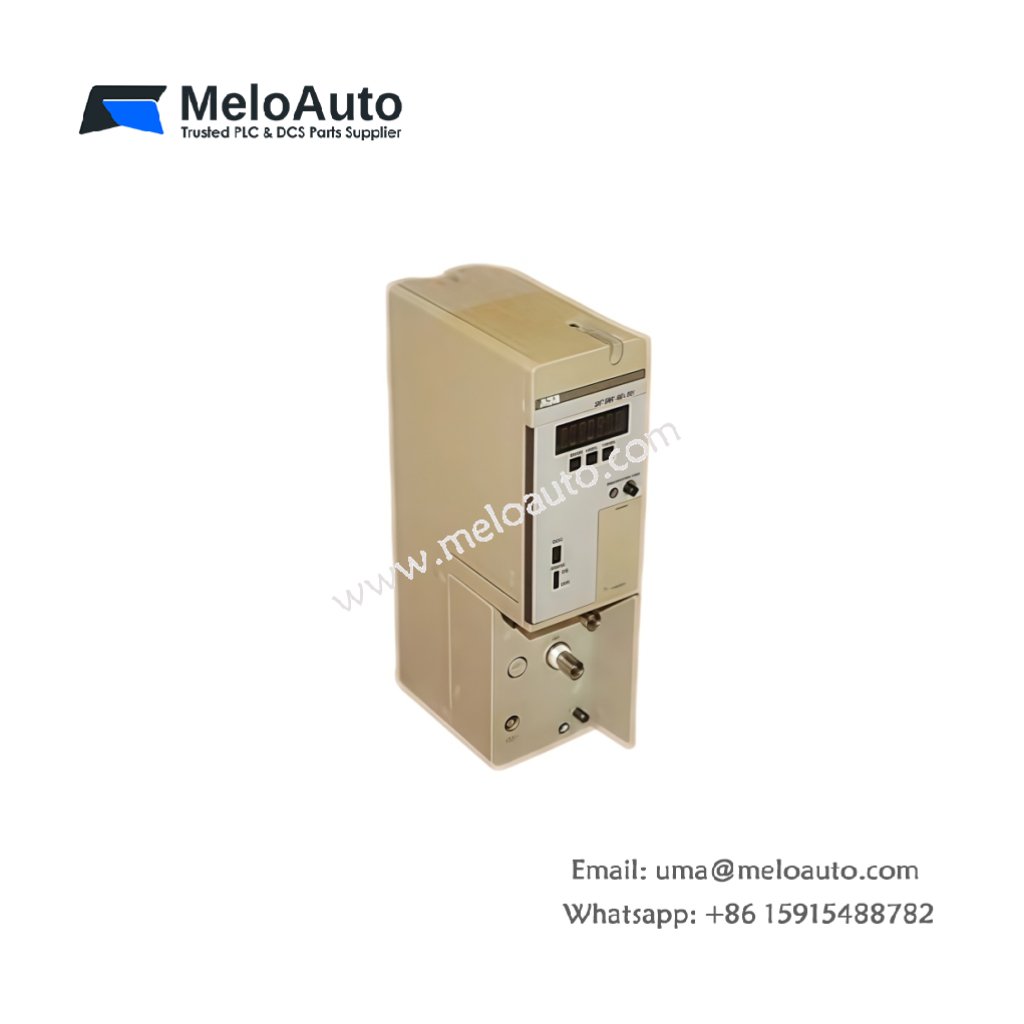

ABB 07 BR 60 R1 Decentral I/O Coupler

Technical Specifications and Coupling Features

The ABB 07 BR 60 R1 decentralized I/O coupler belongs to the Procontic T200 programmable logic controller system. This module connects remote I/O stations to the central processing unit via a TRIAX cable . It supports a maximum of 512 I/O points per coupler for distributed control architectures . The module draws 600 mA from the 5V DC supply and consumes no power from the 24V DC rail . Its dimensions are approximately 25.4 cm x 15.2 cm x 10.2 cm, and it weighs between 0.9 kg and 1.43 kg depending on the configuration . The coupler supports multiple voltage options, including 24V DC, 120V AC, and 230V AC for flexible integration . The module originates from Sweden, Switzerland, or other ABB production facilities .

Functional Capabilities

The 07BR60R1 module actively manages data exchange between the central processor and remote I/O subracks. It receives input signals from distributed sensors and transmits them back to the CPU for processing. Conversely, the module delivers output commands from the CPU to remote actuators. Its design eliminates the need for long parallel wiring runs, thereby reducing installation costs and simplifying system architecture. The module supports up to 512 I/O points per coupler, making it suitable for medium to large distributed control applications . Users can connect this coupler directly to a Procontic T200 base unit for straightforward system expansion.

Application Scenarios

This decentralized I/O coupler suits industrial applications requiring distributed I/O architecture. It proves ideal for material handling systems, conveyor lines, and packaging machinery. The ABB 07BR60R1 also serves in process applications where field devices are physically separated from the main control cabinet. Many facilities continue to rely on this module to maintain their legacy Procontic T200 automation infrastructure. Its multi-voltage support enables integration with various field devices and power sources. For system integrators, this coupler provides a practical solution for extending the reach of existing Procontic-based control systems.
